microPlacer

3D PCBA Printer

The microPlacer is our 3D PCBA printer: a pick-and-place machine with CNC-driven X and Y movement, manual rotation and Z, and a 12 MP camera. Designed, developed and built by DeltaProto in Broek in Waterland. Below is its booklet, page by page.

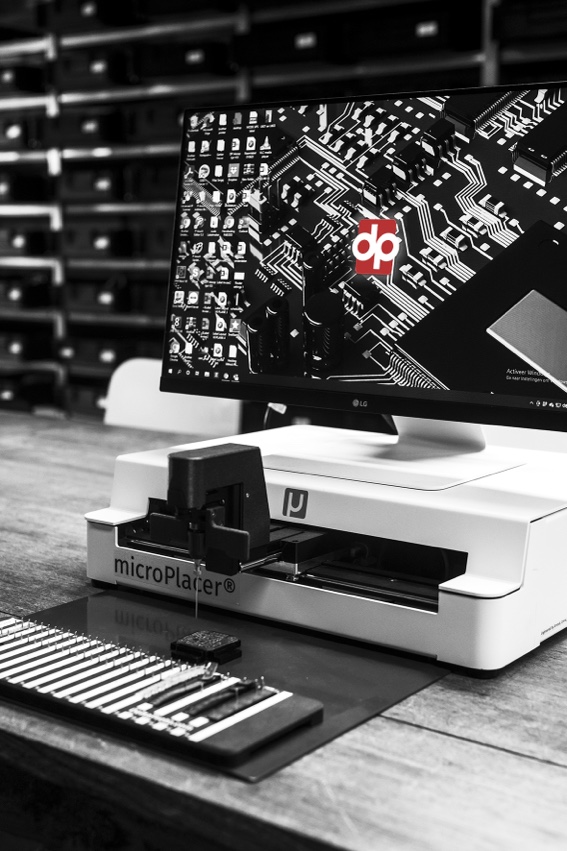

microPlacer booklet, cover

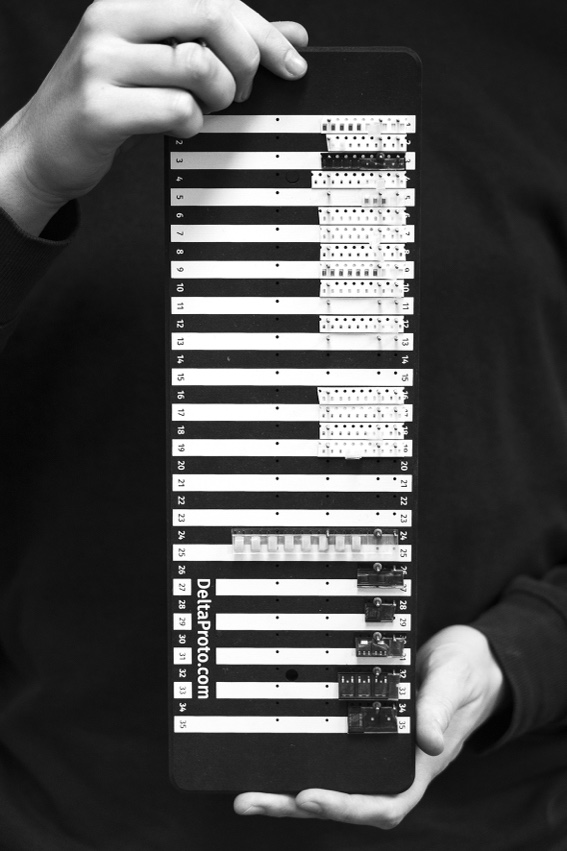

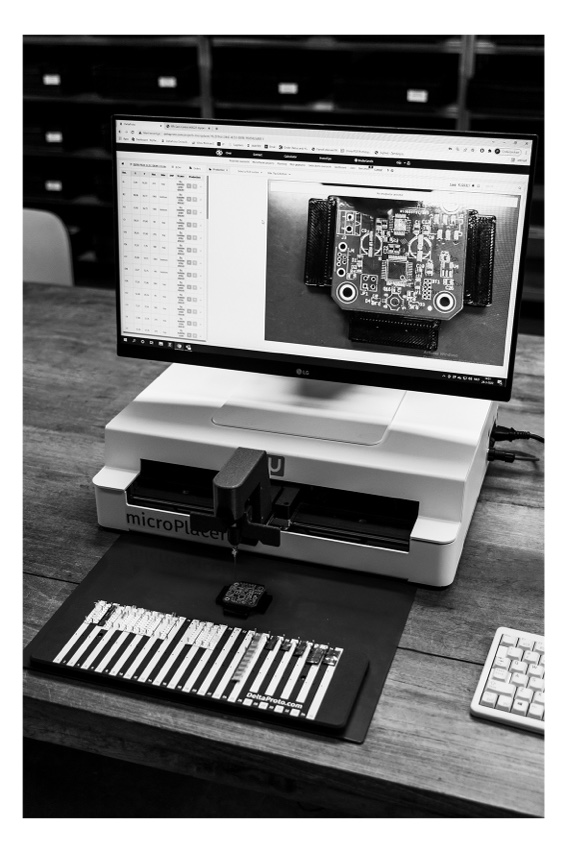

microPlacer booklet, page 2microPlacer booklet, page 3

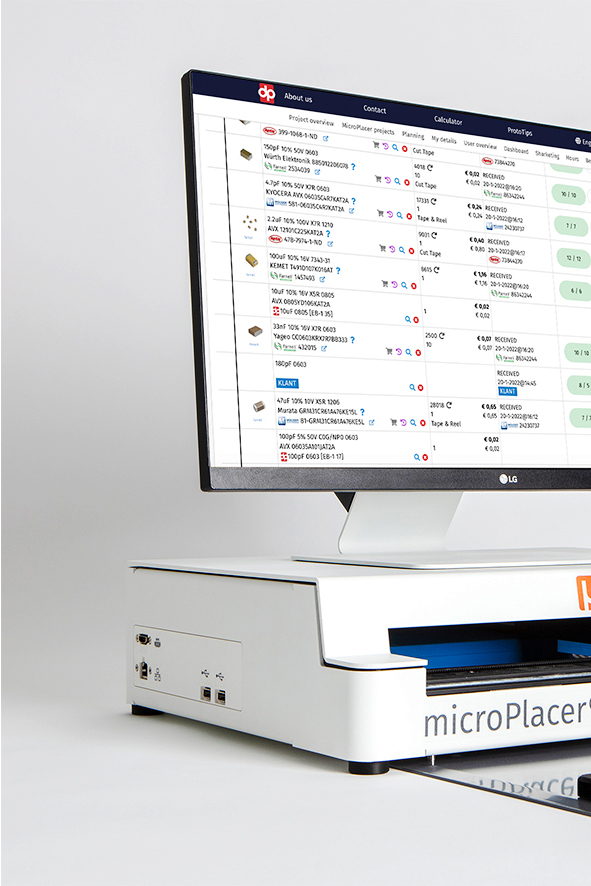

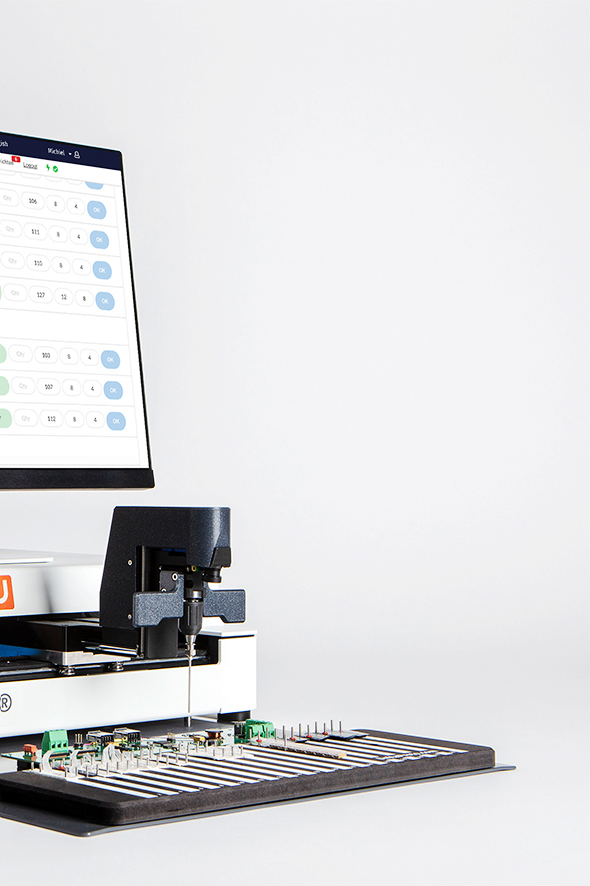

microPlacer booklet, page 4microPlacer booklet, page 5

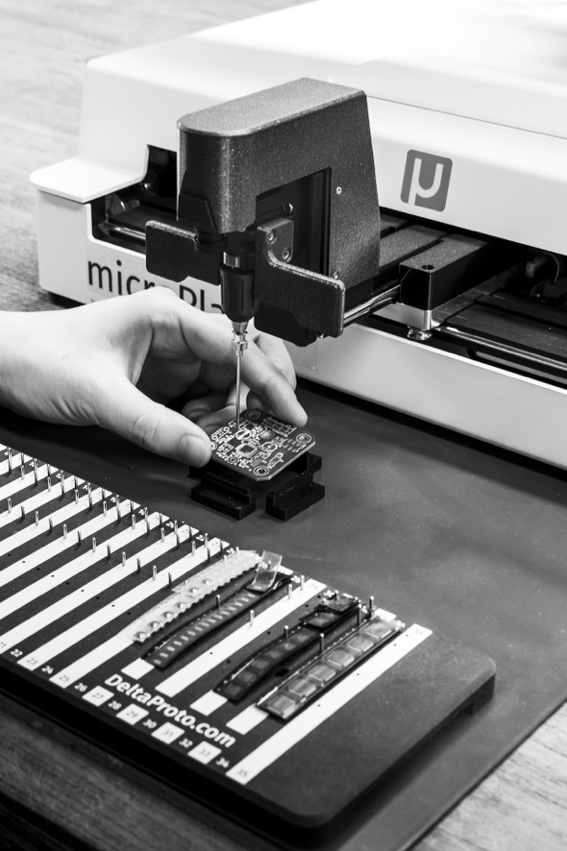

microPlacer booklet, page 6microPlacer booklet, page 7

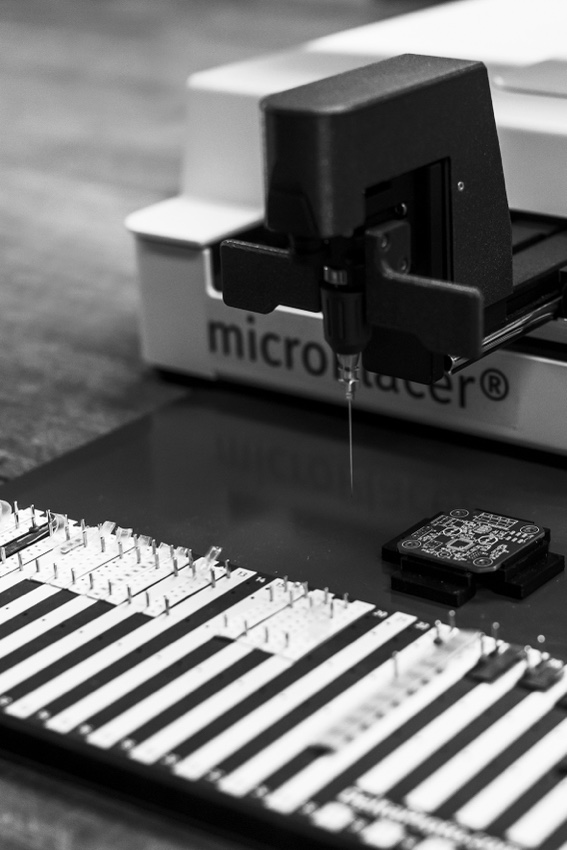

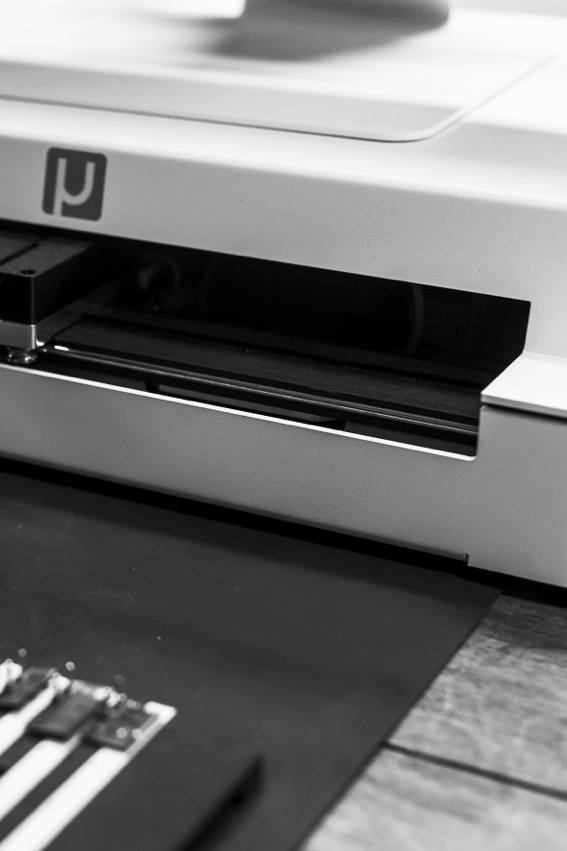

microPlacer booklet, page 8microPlacer booklet, page 9

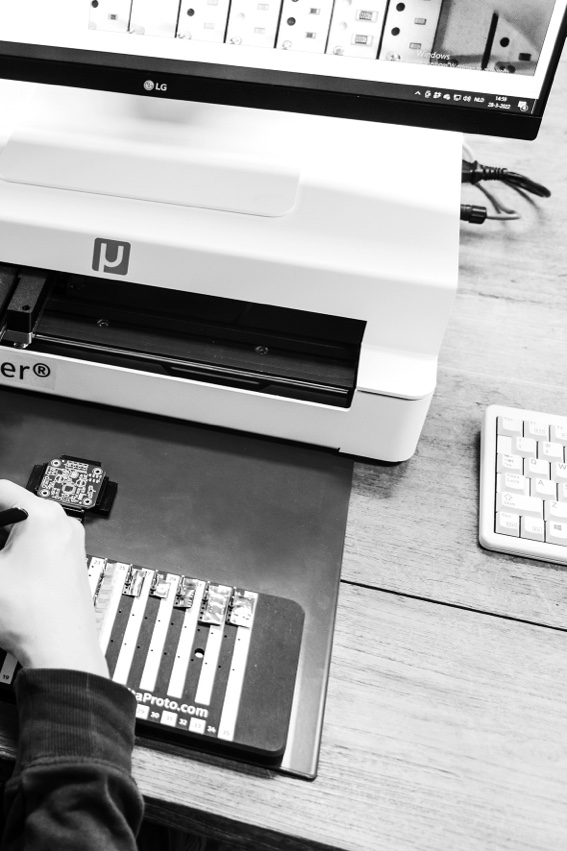

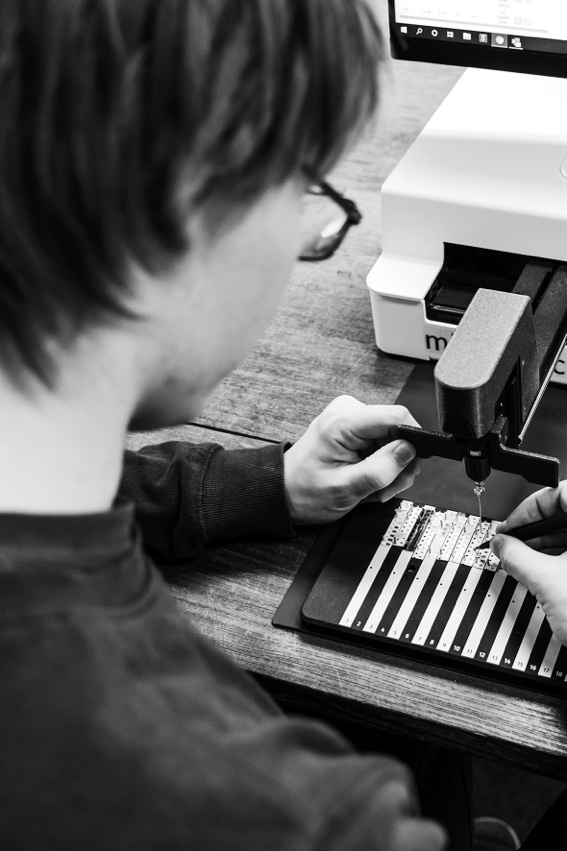

microPlacer booklet, page 10microPlacer booklet, page 11

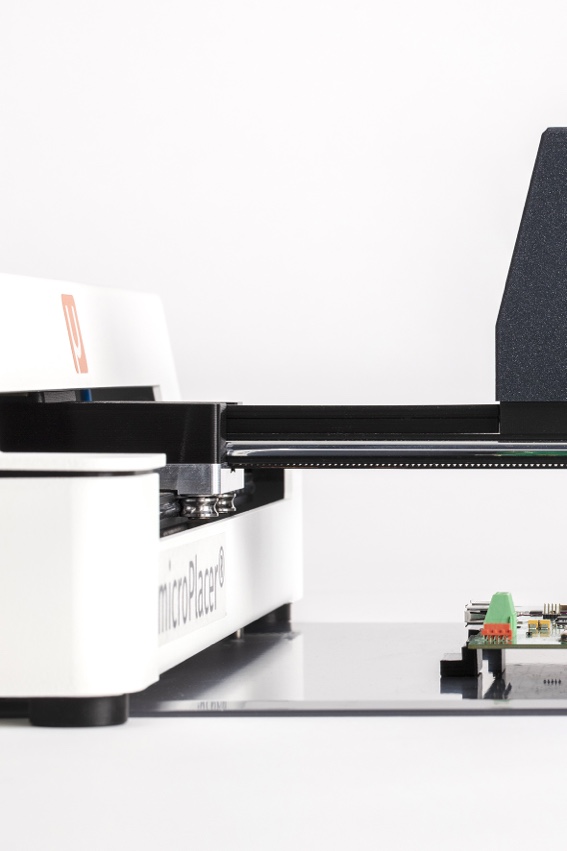

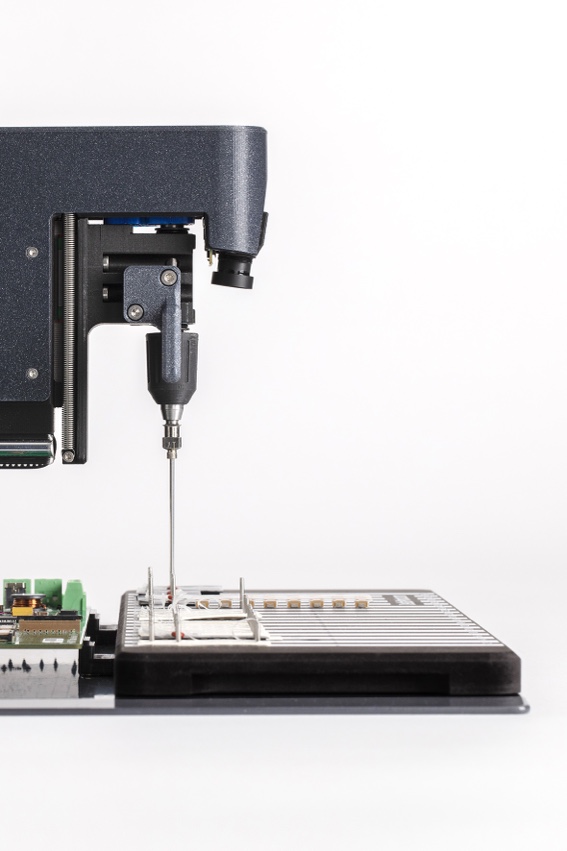

microPlacer booklet, page 12microPlacer booklet, page 13

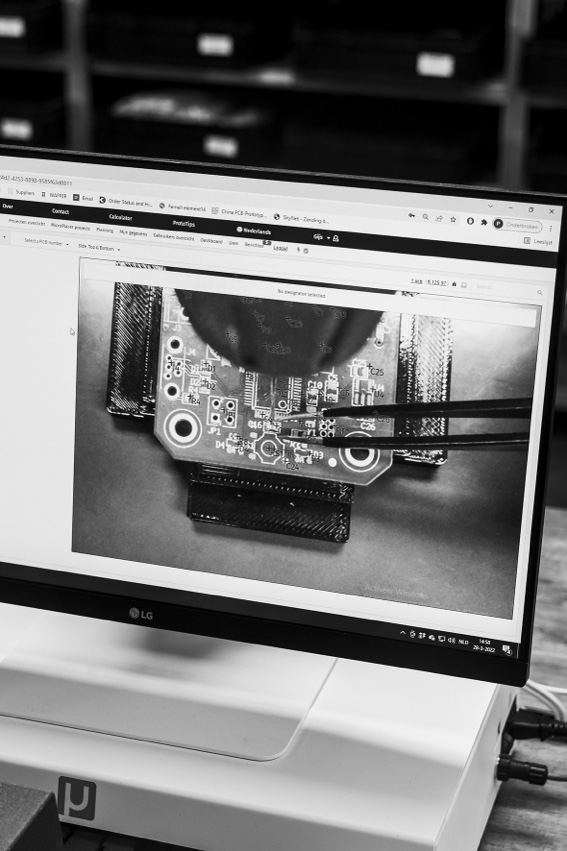

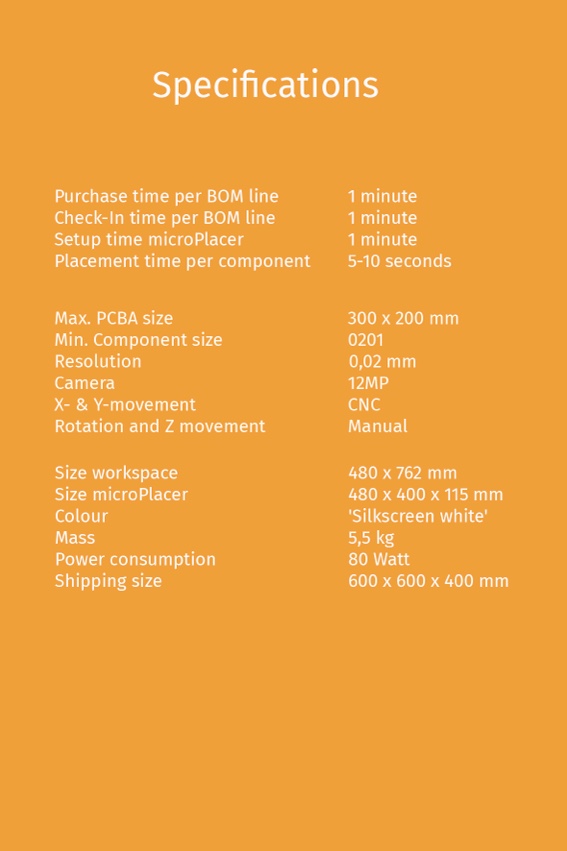

microPlacer booklet, page 14: SpecificationsmicroPlacer booklet, page 15

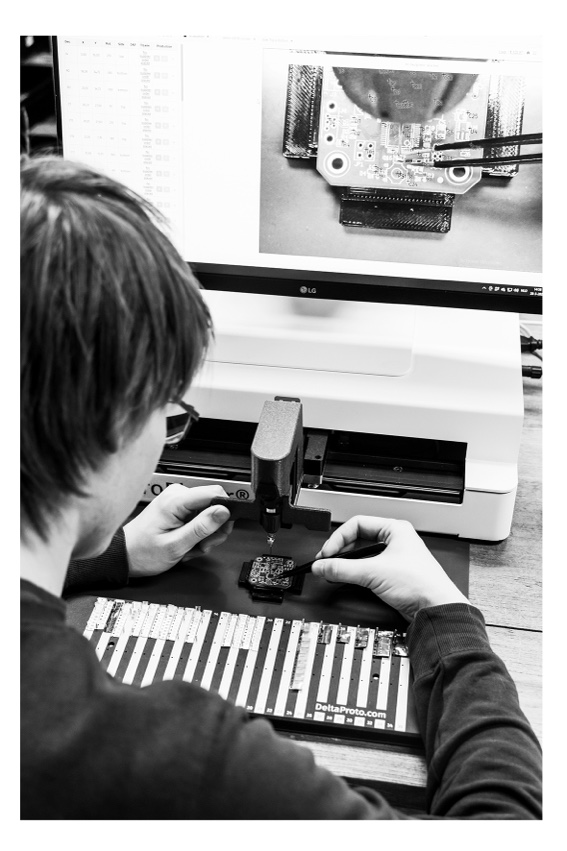

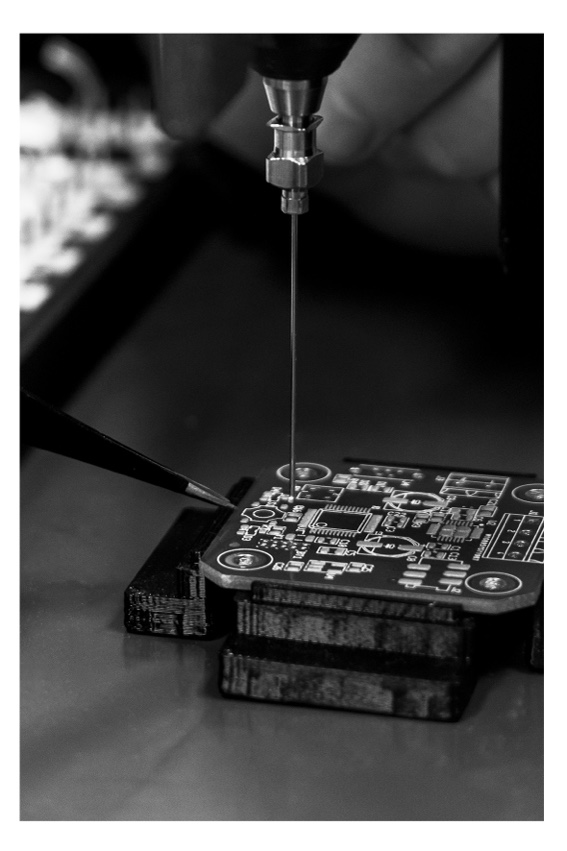

microPlacer booklet, page 16microPlacer booklet, page 17

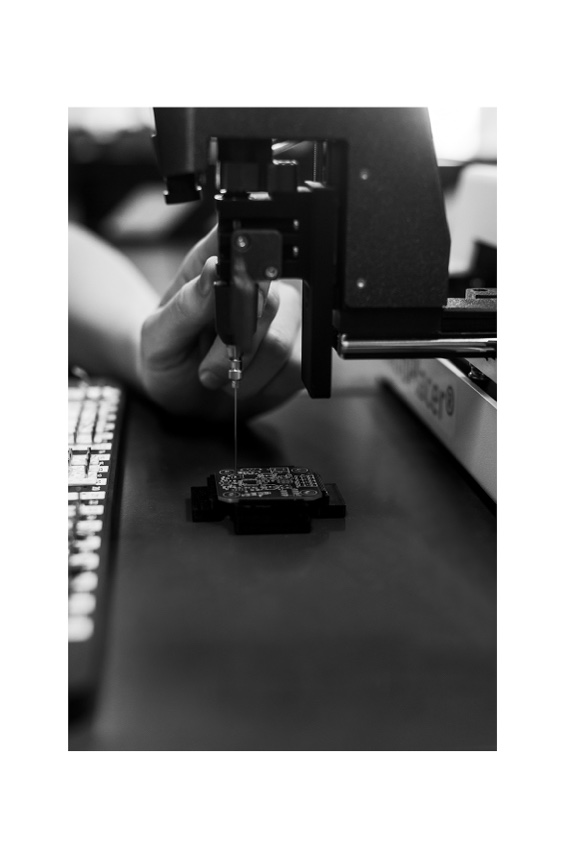

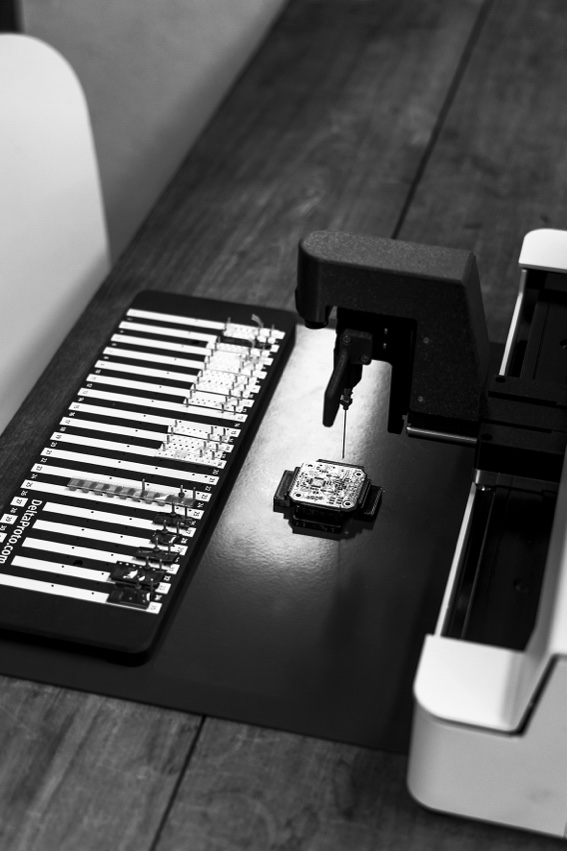

microPlacer booklet, page 18microPlacer booklet, page 19

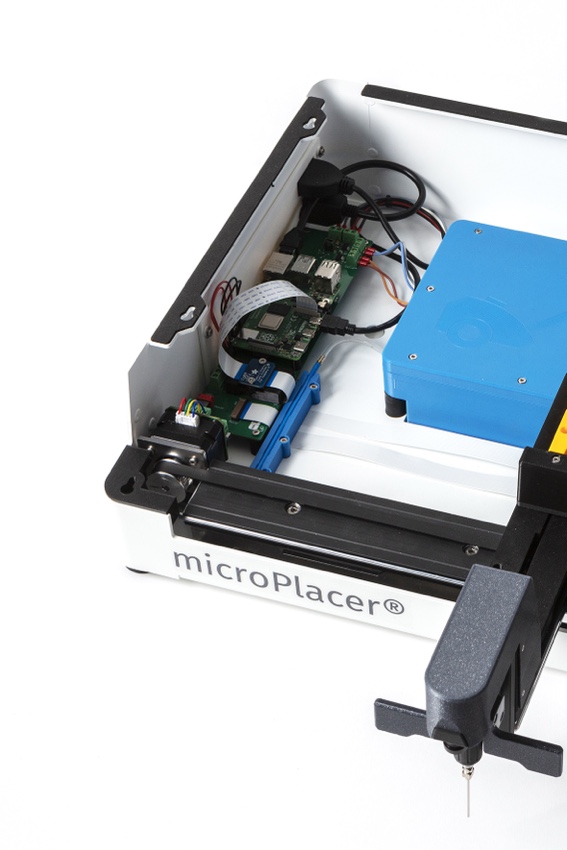

microPlacer booklet, page 20microPlacer booklet, page 21

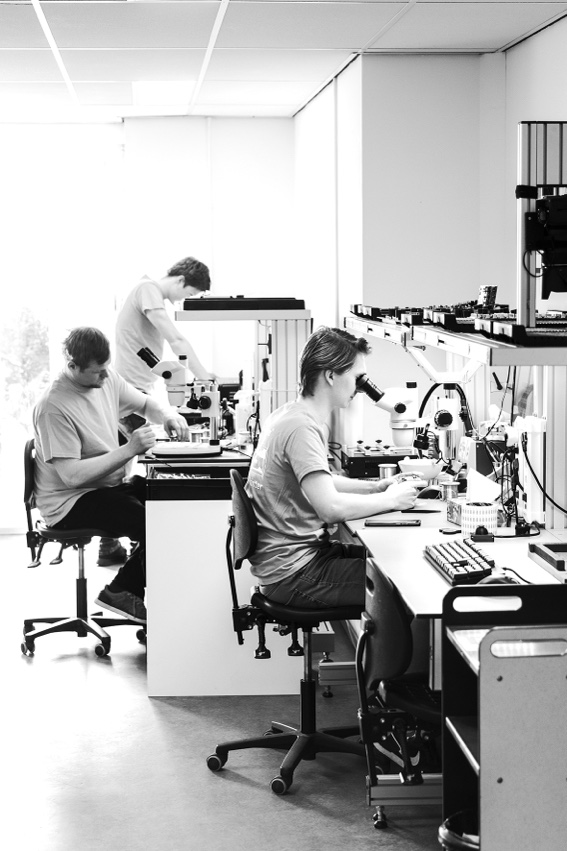

microPlacer booklet, page 22microPlacer booklet, page 23

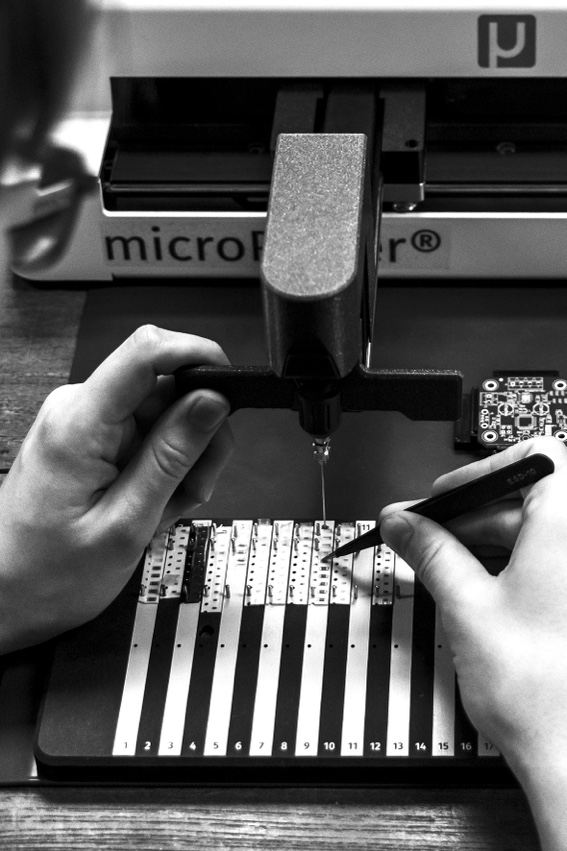

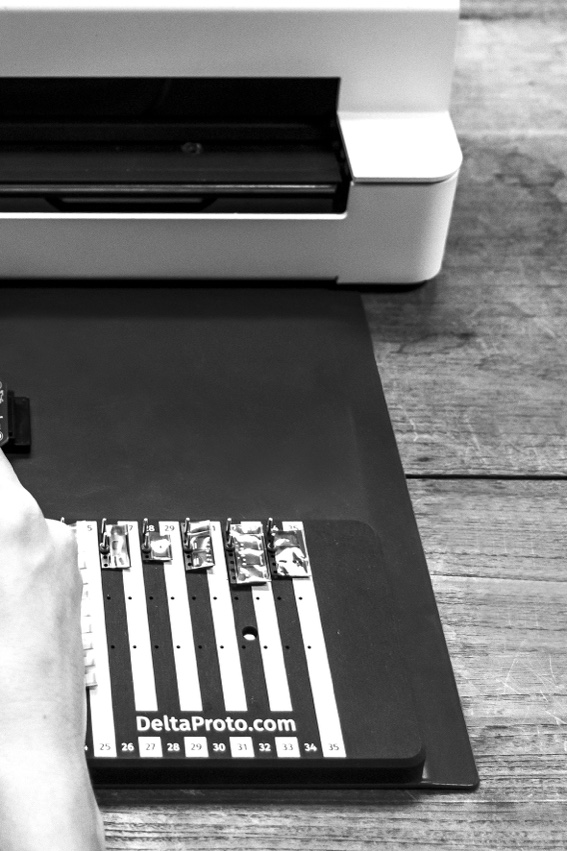

microPlacer booklet, page 24microPlacer booklet, page 25

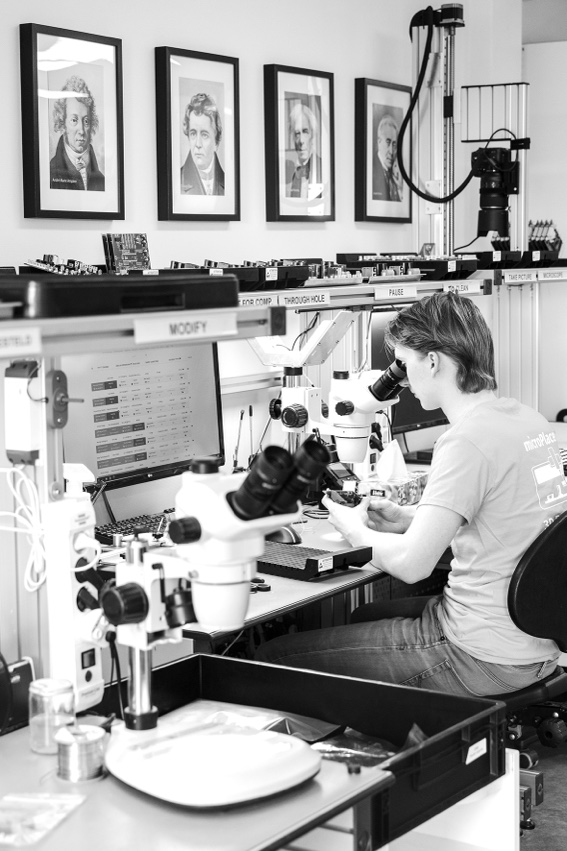

microPlacer booklet, page 26microPlacer booklet, page 27

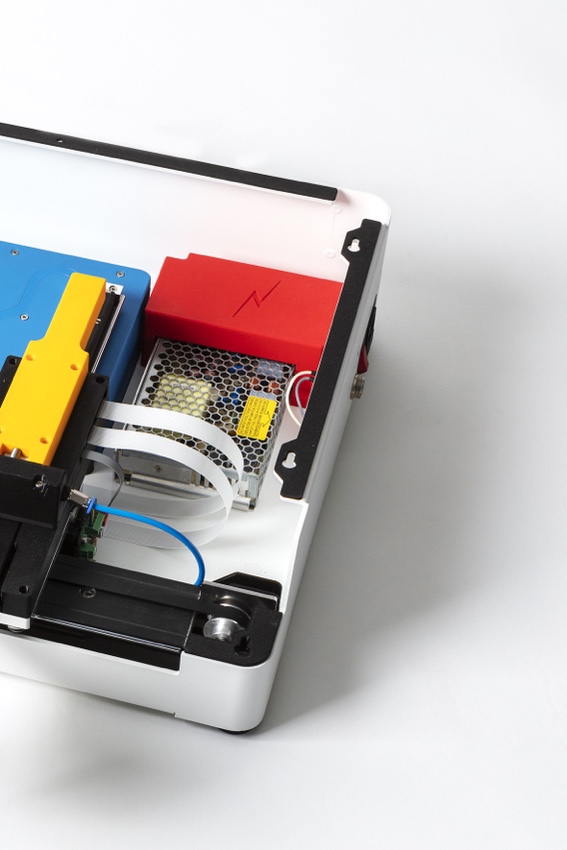

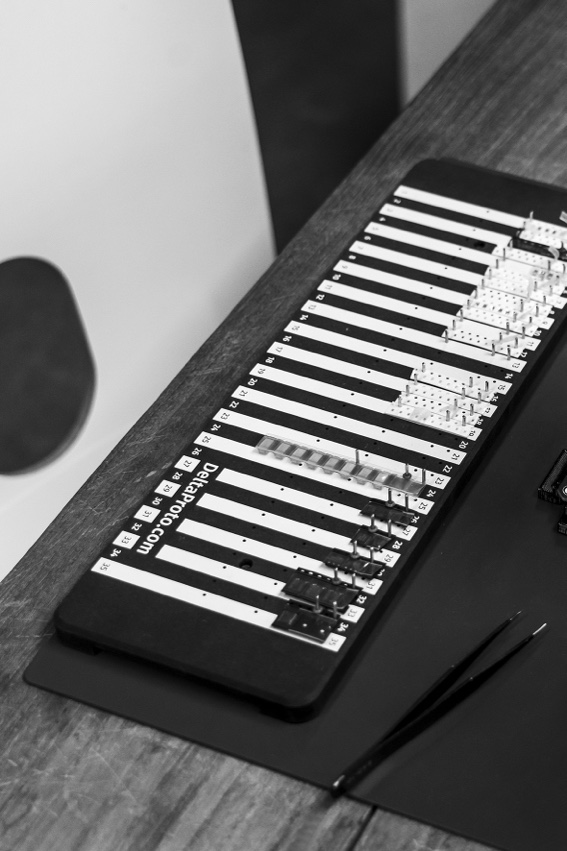

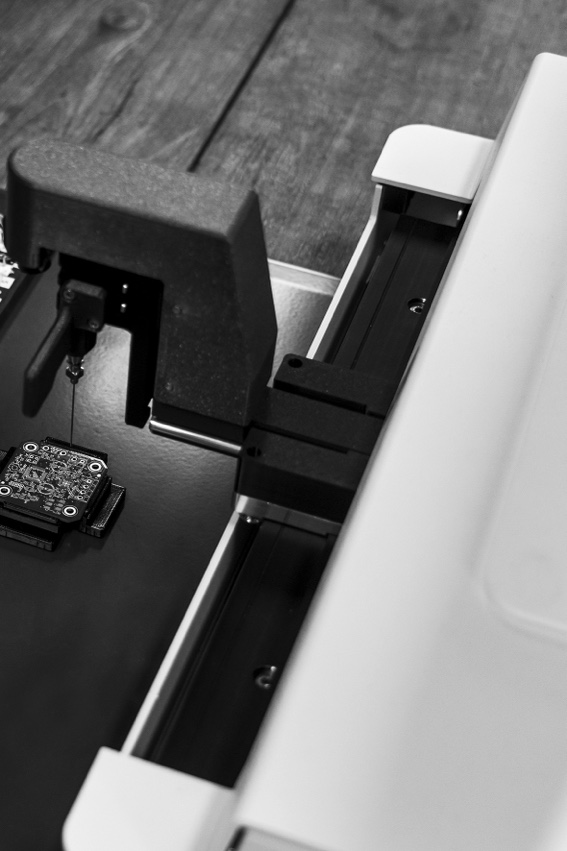

microPlacer booklet, page 28microPlacer booklet, page 29

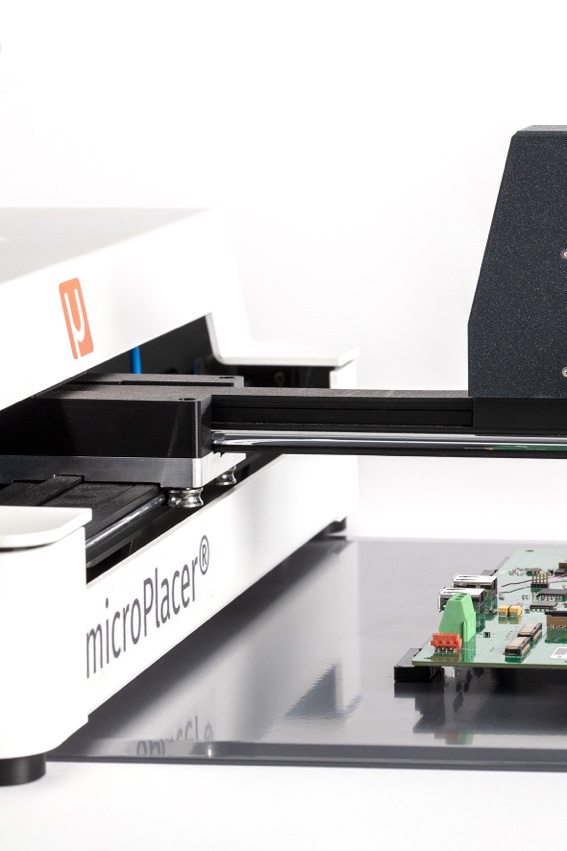

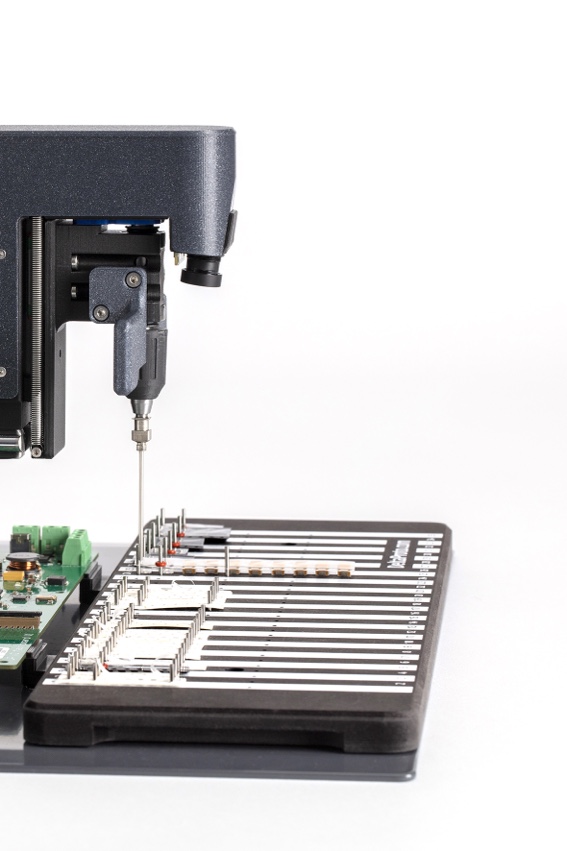

microPlacer booklet, page 30microPlacer booklet, page 31
microPlacer booklet, back cover: microPlacer 3D PCBA Printer, Happy Engineering

Specifications

Purchase time per BOM line1 minute
Check-in time per BOM line1 minute
Setup time microPlacer1 minute
Placement time per component5–10 seconds
Max. PCBA size300 x 200 mm
Min. component size0201
Resolution0.02 mm
Camera12 MP
X and Y movementCNC
Rotation and Z movementManual
Workspace size480 x 762 mm
microPlacer size480 x 400 x 115 mm
ColourSilkscreen white
Mass5.5 kg
Power consumption80 W
Shipping size600 x 600 x 400 mm

Download the booklet as PDF
